ABARTH 500 NEW 2010 1.4L 16V TB MULTIAIR 118kW/158HP IAW8GMKC

ECU MARELLI 8GMK/8GML · 160 CV (118 kW) · 1400 cc · Benzina sovralimentato

ECU Database › ABARTH › ABARTH 500 NEW 2010 1.4L 16V TB MULTIAIR 118kW/158HP IAW8GMKC

Find the firmware identifiers (hardware, software and update numbers), available tuning options and how to get the original or remapped file.

✓ Tuning via file (flash) ✓ Add-on module available 45 firmware versions

Get the file for this vehicle

Buy the file (original or remapped)Register on mastertuningfile.com and order the file

Are you a workshop or tuner?

Vehicle data

BrandABARTH
Model500 NEW 2010
Engine1.4L 16V TB MULTIAIR 118kW/158HP IAW8GMKC
Stock power160 CV / 118 kW
Displacement1400 cc
FuelBenzina sovralimentato
Vehicle typeAuto

ECU

ManufacturerMARELLI
Model8GMK/8GML
Memory / EPROMMicro BGA STSPC564A80 - 32748Kbit - 400000

Available tuning operations / options:

  • Base timing
  • Base lambda - cold
  • Base Lambda - hot
  • Boost pressure limiter
  • Electronic throttle control
  • Compressor pressure ratio limit for pumping and speed
  • Average power effective limitation
  • Average torque effective limitation
  • Torque limiter
  • Maximum Upstream pressure in event of Normal boost modality
  • Maximum Upstream pressure in event of normal boost modality, Offroad mode activated
  • Maximum Upstream pressure in event of normal boost modality, Sport mode activated
  • Maximum Upstream pressure in event of overboost modality
  • Maximum Upstream pressure in event of overboost modality, Offroad modality activated
  • Maximum Upstream pressure in event of overboost modality, Sport modality activated
  • Max torque profile
  • Torque management in Normal mode
  • Torque management Sport mode
  • Power Control in Normal mode
  • Power Control in Sport mode
  • Power limit torque table
  • Torque limit table for ECT sensor
  • Take-off torque law in Normal mode
  • Take-off torque law in Normal mode with power control
  • Take-off torque law in Sport mode
  • Take-off torque law in Sport mode with power control
  • Wastegate duty-cycle

Firmware identifiers (45)

Hardware No.Software No. (chip)VersionUpdate softwareECU
MM8GMKHW66205600000 1.91.00568206707AHA MARELLI 8GMK/8GML
MM8GMKHW66205500000 1.91.05005500000 MARELLI 8GMK/8GML
MM8GMKHW662057006AI 1.01.00668206706AID MARELLI 8GMK/8GML
MM8GMKHW66205210000 1.91.01905210000 MARELLI 8GMK/8GML
MM8GMKHW66205210000 1.91.02205210000 MARELLI 8GMK/8GML
MM8GMKHW66205500000 1.91.00668206707AGB MARELLI 8GMK/8GML
MM8GMKHW66205210000 1.91.01068206706ADD MARELLI 8GMK/8GML
MM8GMKHW66205600000 1.91.01305600000 MARELLI 8GMK/8GML
MM8GMKHW66605600000 1.91.00768206701AKB MARELLI 8GMK/8GML
MM8GMKHW69009010000 1.91.00568284410ABC MARELLI 8GMK/8GML
MM8GMKHW690010169AA 1.00.01268442169AAB MARELLI 8GMK/8GML
MM8GMKHW69006120000 1.91.00906120000 MARELLI 8GMK/8GML
MM8GMKHW690054088AE 1.91.00668328088AEA MARELLI 8GMK/8GML
MM8GMKHW690017068AB 1.91.00968414868ABB MARELLI 8GMK/8GML
MM8GMKHW690094071AJ 1.91.00668240371AJC MARELLI 8GMK/8GML
MM8GMKHW690094066AJ 1.91.00768240366AJC MARELLI 8GMK/8GML
MM8GMKHW690017071AB 1.91.00768414871ABB MARELLI 8GMK/8GML
MM8GMKHW690010169AA 1.00.00668442168AAB MARELLI 8GMK/8GML
MM8GMKHW69009100000 1.91.00568240370AIA MARELLI 8GMK/8GML
MM8GMKHW690054089AF 1.91.00968328089AFA MARELLI 8GMK/8GML
MM8GMKHW690094069AJ 1.91.00768240369AJC MARELLI 8GMK/8GML
MM8GMKHW690010164AA 1.00.00768442164AAB MARELLI 8GMK/8GML
MM8GMKHW690010165AA 1.00.00568442165AAB MARELLI 8GMK/8GML
MM8GMKHW690017075AB 1.91.00668414875ABB MARELLI 8GMK/8GML
MM8GMKHW69008020000 1.91.00668240367AHF MARELLI 8GMK/8GML
MM8GMKHW690017074AB 1.91.00968414874ABB MARELLI 8GMK/8GML
MM8GMKHW69008020000 1.91.00668240370AHF MARELLI 8GMK/8GML
MM8GMKHW690054086AF 1.91.00768328086AFA MARELLI 8GMK/8GML
MM8GMKHW690094067AJ 1.91.00768240367AJC MARELLI 8GMK/8GML
MM8GMKHW69006300000 1.91.02368240367AGD MARELLI 8GMK/8GML
MM8GMKHW69006130000 1.91.01968240367AFA MARELLI 8GMK/8GML
MM8GMKHW69005300000 1.91.01105300000 MARELLI 8GMK/8GML
MM8GMKHW69005300000 1.91.02105300000 MARELLI 8GMK/8GML
MM8GMKHW690010162AA 1.00.00768442162AAB MARELLI 8GMK/8GML
MM8GMKHW690054085AE 1.91.016054085AE MARELLI 8GMK/8GML
MM8GMKHW69009100000 1.91.00909100000 MARELLI 8GMK/8GML
MM8GMKHW69008020000 1.91.01008020000 MARELLI 8GMK/8GML
MM8GMKHW690017072AB 1.91.00668414872ABB MARELLI 8GMK/8GML
MM8GMKHW690054085AF 1.91.00768328085AFA MARELLI 8GMK/8GML
MM8GMKHW690094068AJ 1.91.00568240368AJC MARELLI 8GMK/8GML
MM8GMKHW690017070AB 1.91.00768414870ABB MARELLI 8GMK/8GML
MM8GMKHW69009100000 1.91.01709100000 MARELLI 8GMK/8GML
MM8GMKHW690010167AA 1.00.00568442167AAB MARELLI 8GMK/8GML
MM8GMKHW690054088AF 1.91.00768328088AFA MARELLI 8GMK/8GML
MM8GMKHW690094070AJ 1.91.00768240370AJC MARELLI 8GMK/8GML

Vehicle technical notes

OBD located to the left of the driver's side, under the steering column and behind the bulkhead or the lid in the fuse box area.
ECU located on or behind the engine block. It may be necessary to remove the engine cover. Difficulty: easy.

ECU notes

Microprocessor BGA SPC564A80 This Setting File can be used for serial system NewGenius. ATTENTION: before proceding with any serial operation please read carefully the corresponding protocol serial manual. To work on this ECU you can use NewTrasdata

Add-on modules available

A plug-and-play add-on module is available for this vehicle (as an alternative or in addition to the file):

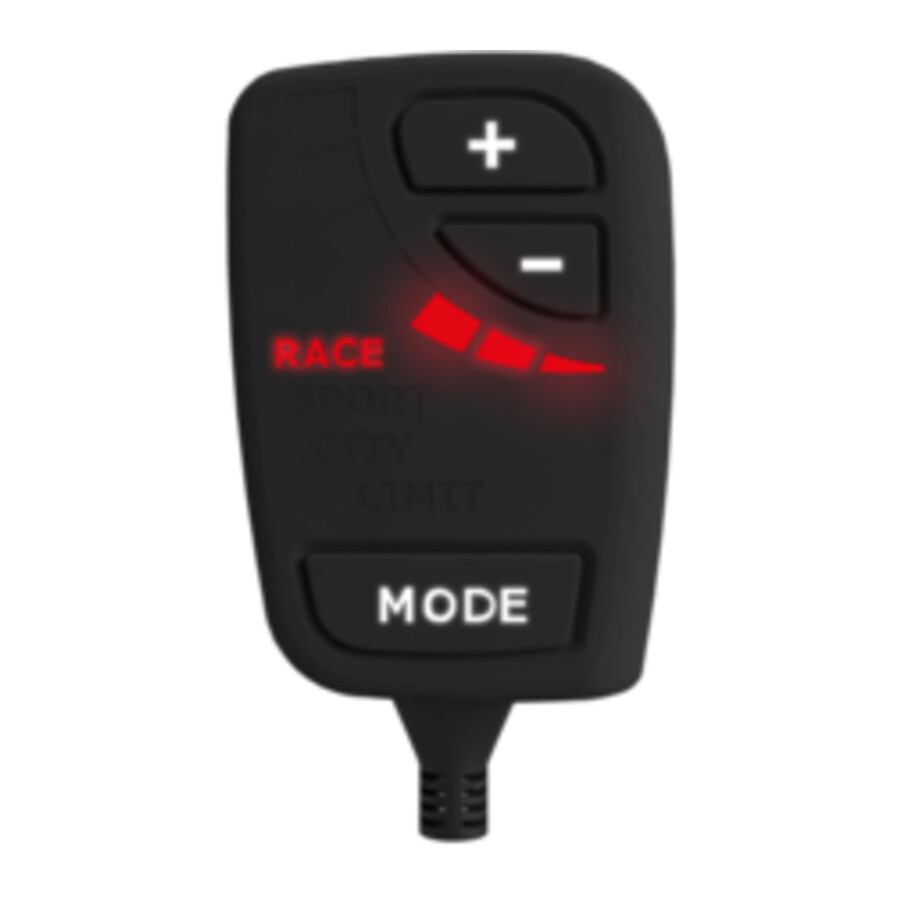

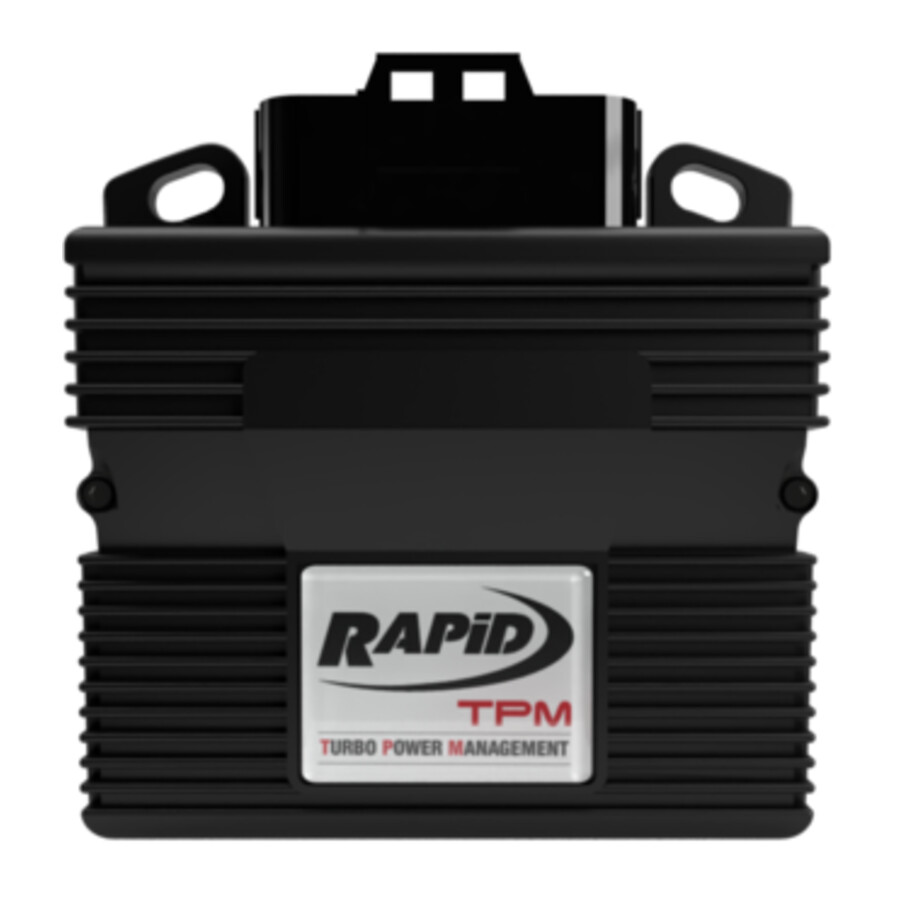

Rapid FR Compact 2 - Modulo Aggiuntivo Dimsport Rapid FR Compact 2 - Modulo Aggiuntivo Dimsport € 215 Buy Rapid TPM - Modulo Aggiuntivo Dimsport Rapid TPM - Modulo Aggiuntivo Dimsport +15 % € 399 Buy Rapid FR - Modulo Aggiuntivo Dimsport Rapid FR - Modulo Aggiuntivo Dimsport € 189 Buy

→ See all add-on modules on the shop

Get the file for this vehicle

Buy the file (original or remapped)Register on mastertuningfile.com and order the file Are you a workshop or tuner?Offer these services yourself: activate your TuningFile platform

Tools to read and write this ECU

Flex Programmatore per rimappatura centraline e cambi automatici Flex Programmatore per rimappatura centraline e cambi automatici ECU + auto gearbox € 1.000 Buy The Genius The Genius OBD + Bench € 2.500 Buy
