AUDI A4 (B8/8K) 2.0L 16V TDI 105kW/141HP EDC17CP20 — ECU BOSCH EDC17CP20

Find the firmware identifiers (hardware, software and update numbers), available tuning options and how to get the original or remapped file.

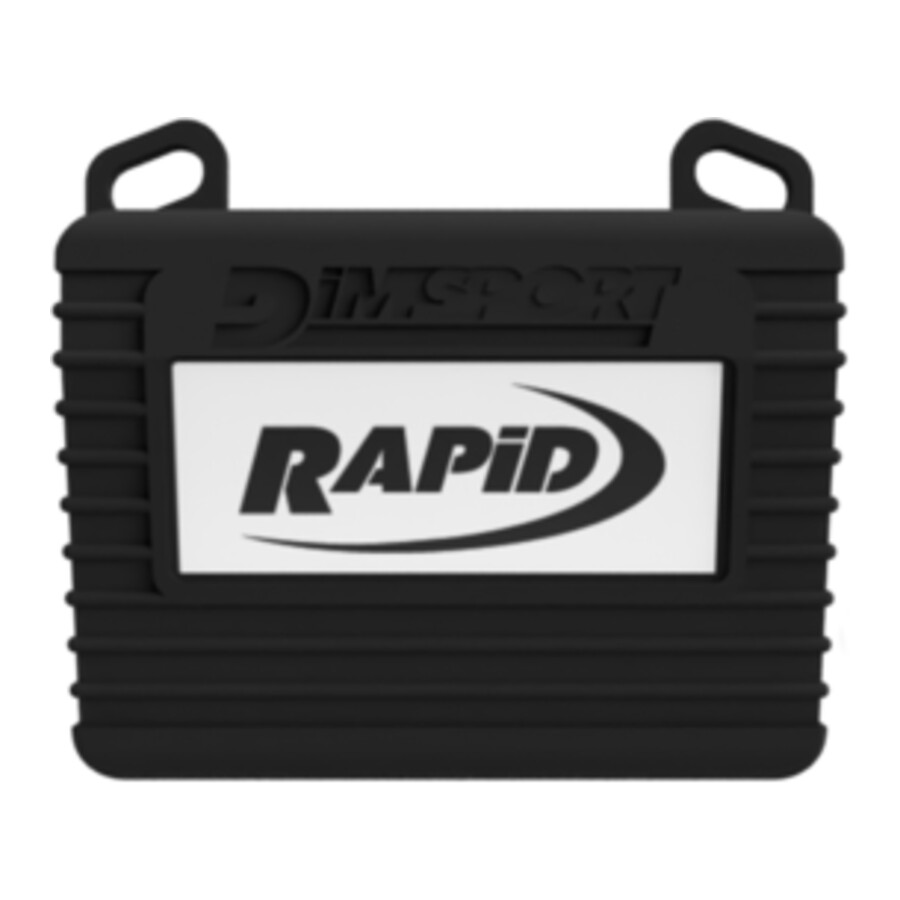

✓ Tuning via file (flash) ✓ Add-on module available 24 firmware versions

Get the file for this vehicle

Buy the file (original or remapped)Register on mastertuningfile.com and order the file

Are you a workshop or tuner?

Vehicle data

Brand	AUDI
Model	A4 (B8/8K)
Engine	2.0L 16V TDI 105kW/141HP EDC17CP20
Stock power	143 CV / 105 kW
Displacement	2000 cc
Fuel	Diesel sovralimentato
Vehicle type	Auto

ECU

Manufacturer	BOSCH
Model	EDC17CP20
Memory / EPROM	SPANSION S29CD016

Available tuning operations / options:

Smoke limiter 2
Boost pressure limiter
Boost pressure
Boost pressure 2
Boost pressure 3
Boost pressure 4
Regeneration limit for DPF
EGR valve control
EGR valve control 2
EGR valve control 3
Max accepted exhaust gas temperature value at particulate sensor
Basic torque management at engine cranking
Injection period
Injection opening time related to inj. pressure
Injection opening time related to inj. pressure 2
J
Injection 2
L
Torque limiter 2
Torque limiter
Torque limiter at high EGT
Smoke limiter
Speed limiter
Protection for fuel overheating
Specific injection pressure limiter
Specific injection pressure limiter 3
Specific injection pressure limiter 4
Relative permissible torque from the pedal position in torque limitation
Specific injection pressure
Specific injection pressure 2
Driver torque request
Variable geometry duty cycle limit
Variable geometry duty cycle limit 2

Firmware identifiers (24)

Hardware No.	Software No. (chip)	Version	Update software	ECU
—	—	1.94.016	03L906022NN 9980	BOSCH EDC17CP20
—	—	1.00.024	03L906022NN 5483	BOSCH EDC17CP20
—	—	1.94.008	03L906019AL 6037	BOSCH EDC17CP20
—	—	1.94.047	03L906022NN 9096	BOSCH EDC17CP20
—	—	1.94.003	03L906022RJ 9979	BOSCH EDC17CP20
—	—	1.94.014	03L906022RL 9978	BOSCH EDC17CP20
—	—	1.94.012	—	BOSCH EDC17CP20
—	—	1.94.009	03L997017E 0334	BOSCH EDC17CP20
—	—	1.94.031	03L906022RJ 6037	BOSCH EDC17CP20
—	—	1.00.020	03L997017L 0363	BOSCH EDC17CP20
—	—	1.00.022	03L906022NN 5070	BOSCH EDC17CP20
—	—	1.94.019	03L906022RJ 5498	BOSCH EDC17CP20
—	—	1.00.018	03L906022RL 5493	BOSCH EDC17CP20
—	—	1.00.033	03L906022NN 6028	BOSCH EDC17CP20
—	—	1.00.023	03L906022NN 6028	BOSCH EDC17CP20
—	—	1.94.007	03L906022NN 9978	BOSCH EDC17CP20
—	—	1.94.026	03L906022RJ 8439	BOSCH EDC17CP20
—	—	1.00.023	03L906022RL 5072	BOSCH EDC17CP20
—	—	1.94.004	03L906022NN 9982	BOSCH EDC17CP20
—	—	1.00.011	03L997017G 0359	BOSCH EDC17CP20
—	—	1.94.021	03L906022RL 6035	BOSCH EDC17CP20
—	—	1.94.010	03L906022RL 9979	BOSCH EDC17CP20
—	—	1.00.024	03L906022RL 8435	BOSCH EDC17CP20
—	—	1.94.029	03L906022RJ 3411	BOSCH EDC17CP20

Vehicle technical notes

OBD located to the left of the driver's side, accessible without removing anything to the left of the pedalboard.

ECU notes

MICRO Infineon Tricore TC1796 This setting file can be used with the New Genius, the protocol supports identification and writing only. IF the matching original file is already present in databank it can be used for the modification and the writing operation. To work on this ECU you can use NewTrasdata

MICRO Infineon Tricore TC1796
